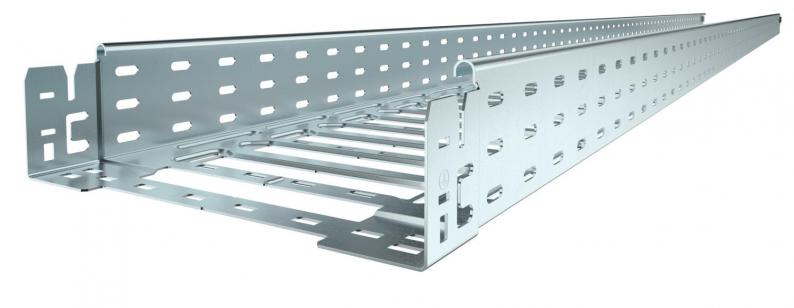

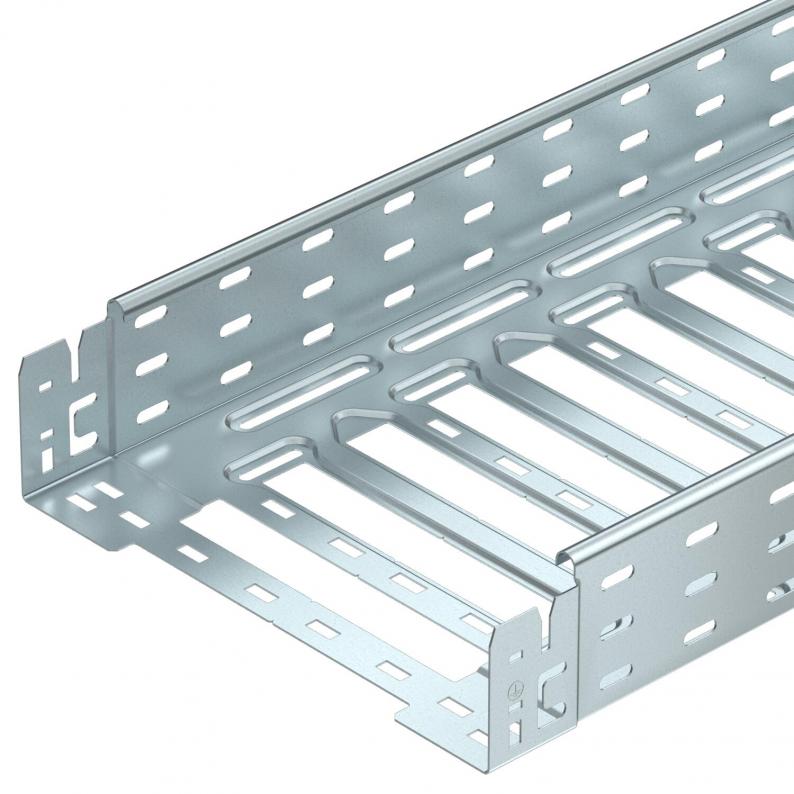

Cable tray SKS-Magic® 85 FS

Cable tray SKS-Magic® 85 FS

Type SKSM 810 FS
|
Item no. 6059530
|
EAN 4012195832966
Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness
Colour

Smallest selling unit: 3 m

m

Description

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Continuous equipotential bonding is guaranteed without additional components.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height85 mm
Dimension y62 mm
Dimension L30 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section83 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1,5 mm
Tabanda montaj deliğiyes
NATO hole patternno
Usable cross-section8300 mm²
Üst parçalıno
Boyut85x100x3050
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening

Loads

Destek aralığı 1,5m3,4 kN/m
Destek aralığı 2,0m2,7 kN/m
Destek aralığı 2,5m2,07 kN/m
Destek aralığı 3,0m1,5 kN/m
NEMA load class8C
SKSM 85 típusú kábelcsatorna terhelési diagramja

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya7,9441 kg CO2e / 1 Meter

Accessories

System accessories
Type
KTSMV 810 FS

Smallest selling unit: 1 piece

piece

Item no. 6036200

45° bend 85 FS
Type
RB 45 810 FS

Smallest selling unit: 1 piece

piece

Item no. 6036700

90° bend 85 FS
Type
RB 90 810 FS

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Maintain electrical functions
Colour
SKSM 810 FS
Item no.
6059530
Length
3050
Width
100
Height
85
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
SKSM 820 FS
Item no.
6059534
Length
3050
Width
200
Height
85
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
zinc
SKSM 830 FS
Item no.
6059536
Length
3050
Width
300
Height
85
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
SKSM 840 FS
Item no.
6059538
Length
3050
Width
400
Height
85
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
zinc
SKSM 850 FS
Item no.
6059540
Length
3050
Width
500
Height
85
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
zinc
SKSM 860 FS
Item no.
6059542
Length
3050
Width
600
Height
85
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
Colour
zinc
