GESRA7/10 service outlet with handle clamp

Type GESRA7 10U

Item no. 7405544

EAN 4012195104261

Data sheet (PDF)

Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

7405544 / GESRA7 10U

Floor covering thickness

5 mm

Smallest selling unit: 1 piece

piece

Description

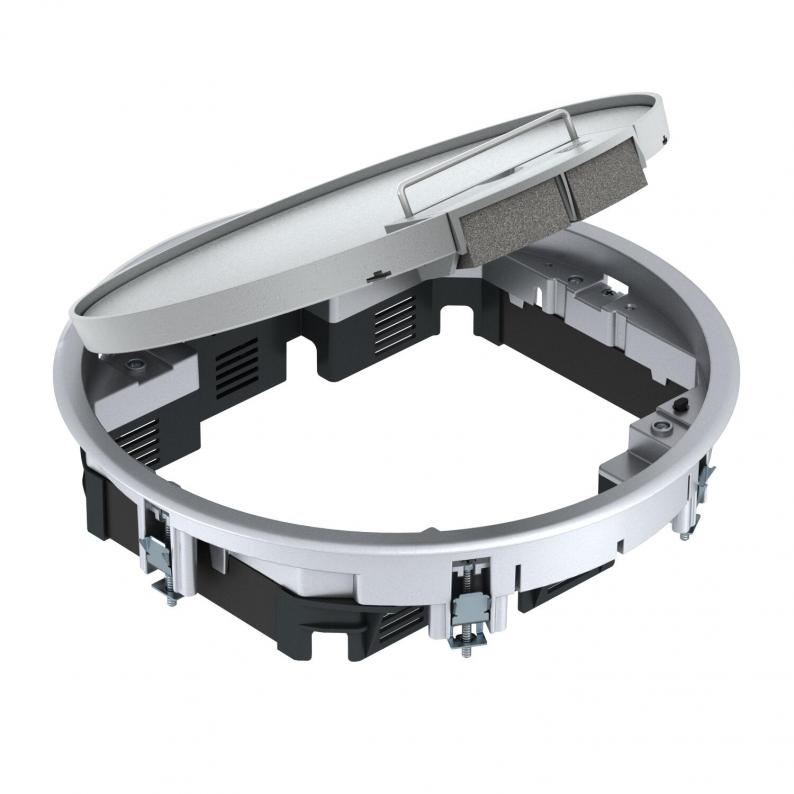

Service outlet with handle clamp for up to 10 individual Modul 45 devices in 2 UT3 and one UT4 universal support, use in duct systems and system floors for indoor use.

Cord outlet made from polyamide RAL 9011.

10 mm floor covering recess in hinged cover can be reduced to 5 mm using enclosed pressboard filler.

Up to 7 installation devices with 50 mm central plate can be inserted.

Technical data

Floor height, min.	78 mm
Floor covering thickness	5 mm
Suitable for screed-covered underfloor ducts	yes
Number of installable devices	10
Seal installation option	no
Installation diameter	275
Suitable for underfloor ducts	yes
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Floor care	Dry
Frame version	Carpet protection frame
Number of mounting boxes	3
Suitable for wet care	no
Installation depth	78 mm
External diameter	294 mm
With floor covering recess	yes
Floor covering protection frame	yes
Cable outlet version	Swivellable cord outlet
Device support to accept mounting boxes	yes
Protection rating IK code	IK10
Installation system type	UT3 / UT4
Heavy-duty version	no
Nominal size for device installation units	R7
Approvals	VDE
Protection rating (IP) when used	IP20
Protection rating (IP) when unused	IP40
Vertical load, small area	to 3,000 N
Vertical load, large area	to 10,000 N
Version for	Round
Opening mechanism	Handle
Clamping range D, min.	15 mm
Clamping range D, max.	37 mm

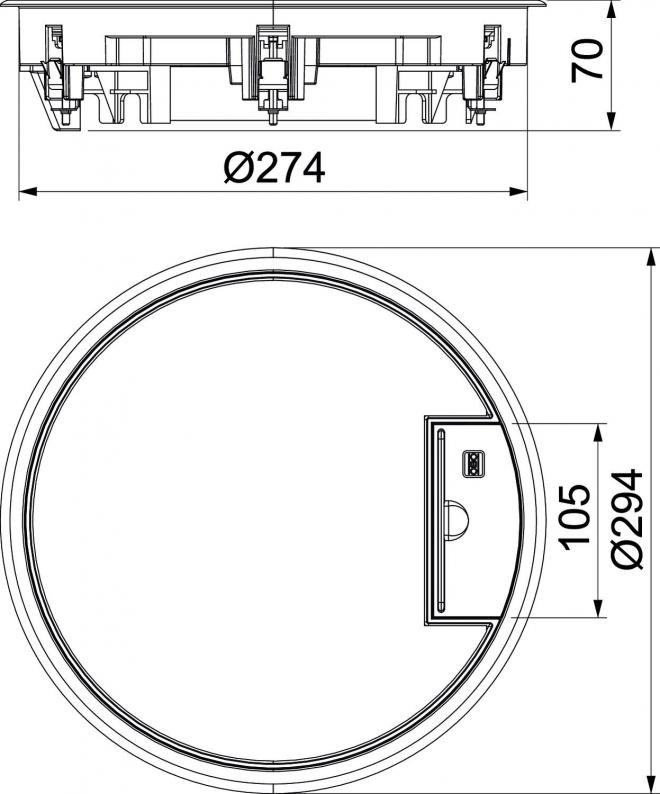

Dimension	Ø294x71
Material	Cast aluminium
Floor covering thickness max.	10 mm
