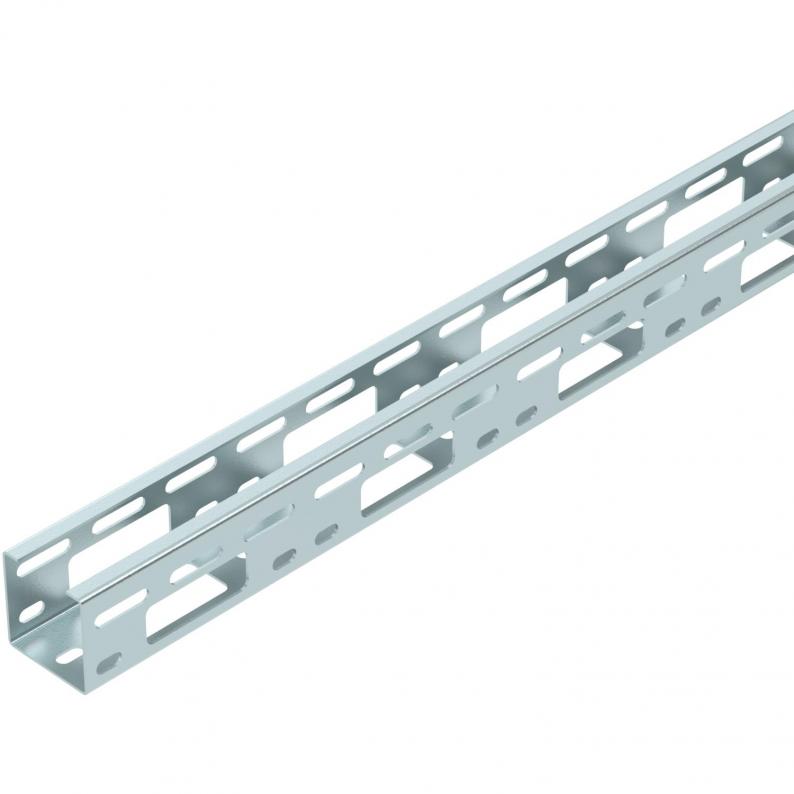

AZ small duct 50 FS

AZ small duct 50 FS

Type AZK 050 FS
|
Item no. 6075096
|
EAN 4012196068951
Show all variants
Item no. / Type
6075096 / AZK 050 FS
Length
3000 mm
Width
50 mm
Maintain electrical functions
no
Plate thickness
1,5 mm

Smallest selling unit: 3 m

m

Description

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width50 mm
Height50 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section25 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section2500 mm²
Dimension50 x 50 x 1,5
Dimension50x50x3000
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Loads

Support spacing 1.0 m2,5 kN/m
Support spacing 1.5 m2 kN/m
Support spacing 2.0 m1,2 kN/m
Support spacing 2.5 m0,85 kN/m
Support spacing 3.0 m0,5 kN/m

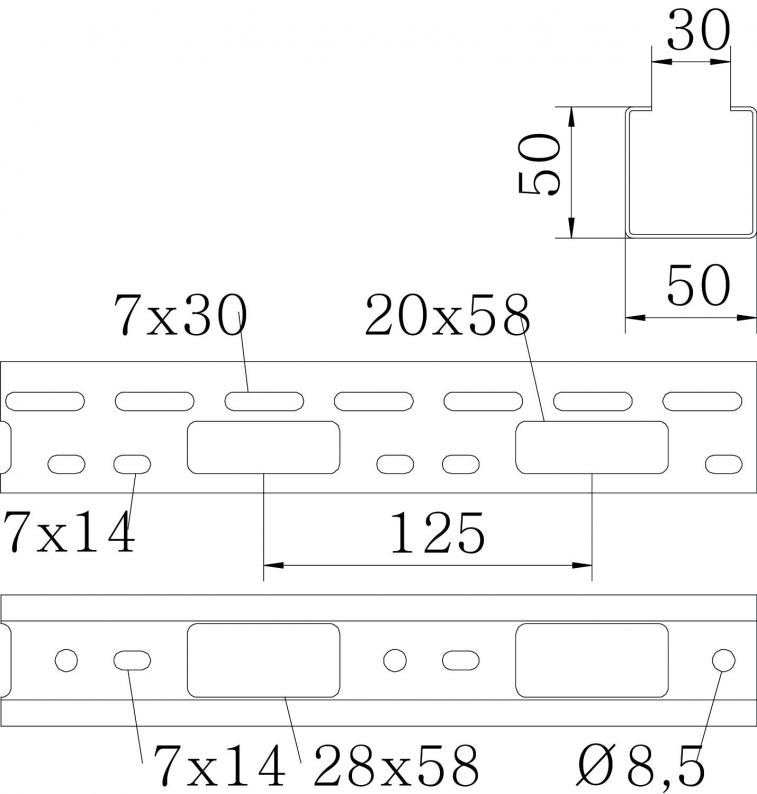

Load diagram, AZ small duct

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Environmental Data

4,233 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate4,233 kg CO2e / 1 Meter
